Wheel tread
Casting Iron
Wheel center
Iron
Bearing
Single ball bearing
Threadguard
None
Temperature
-20°C to +120°C
Hardness of Tread
A 94 Shore
Standard
EN 12530
Applicable Terrain
Tile Floor
You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.
Swipe right to see the full table
Wheel Number | ![]() Bearing Type | ![]() Wheel Diameter ( mm ) | ![]() Flange Diameter ( mm ) | ![]() Wheel Width ( mm ) | ![]() Tread of Width ( mm ) | ![]() Hub Length ( mm ) | ![]() Hub Bore ( mm ) | ![]() Load Capacity ( kg ) |
---|---|---|---|---|---|---|---|---|
75J40JIDDX | ![]() | 75 | 100 | 40 | 30 | 47 | 20 | 800 |
100J46JIDDX | ![]() | 100 | 125 | 46 | 36 | 52 | 20 | 1200 |
125J46JIDDX | ![]() | 125 | 145 | 46 | 36 | 52 | 20 | 1500 |
150J46JIDDX | ![]() | 150 | 175 | 46 | 36 | 52 | 20 | 2000 |
180J46JIDDX | ![]() | 180 | 210 | 46 | 36 | 52 | 20 | 2200 |
200J53JIDDX | ![]() | 200 | 230 | 53 | 38 | 60 | 25 | 2500 |
200J80JIDDX | ![]() | 200 | 230 | 80 | 60 | 90 | 40 | 3000 |
250J65JIDDX | ![]() | 250 | 300 | 65 | 50 | 70 | 30 | 3000 |
250J80JIDDX | ![]() | 250 | 300 | 80 | 60 | 90 | 40 | 4500 |

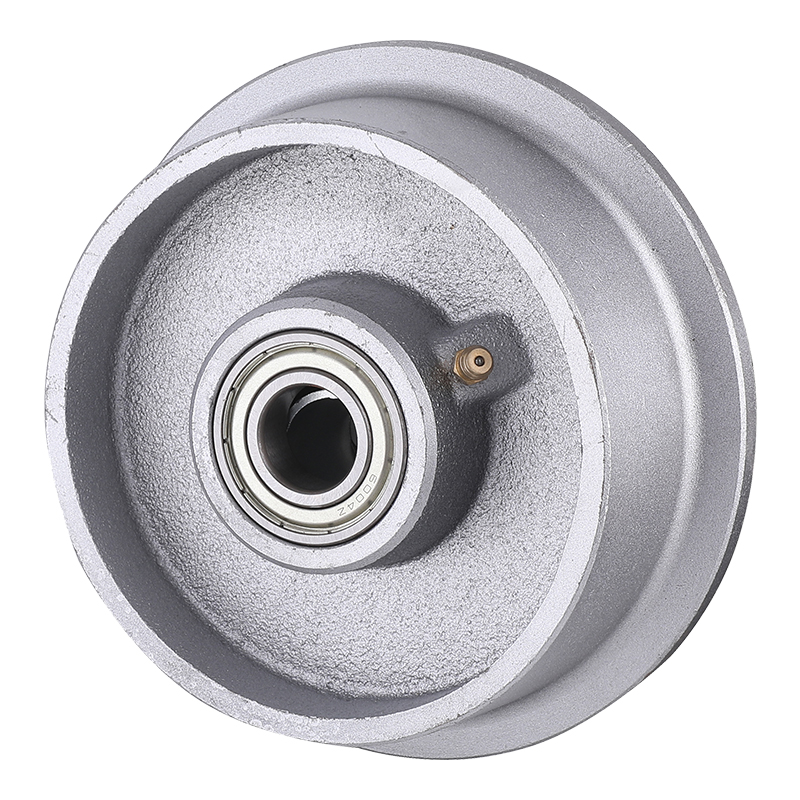

Taishan Castors and Wheels Manufacturer takes pride in crafting and offering cast iron wheels tailored to your precise specifications, setting the standard for quality and customization in the industry.
Product Highlights:
Our cast iron wheels are available in diameters ranging from 75mm to 250mm, ensuring a perfect fit for your unique requirements.
They are designed to support a load capacity of 800kg to 4500kg, making them ideal for a variety of heavy-duty applications.
Wheel Characteristics:
Robust Load Capacity: Engineered to bear substantial weights, these wheels are the epitome of strength and reliability.
Outstanding Wear Resistance: Built to withstand the test of time, they maintain their integrity even in the most abrasive conditions.
Versatility in Challenging Environments: Capable of performing optimally on floors littered with chips and in high-temperature environments, these wheels are a testament to our commitment to durability.
Silver Casting Iron Design: With an attractive silver finish, these wheels combine form with function, enhancing the aesthetics of your equipment.
Suitable for a wide array of industrial uses, our cast iron wheels are the perfect choice for:
High-duty carts and equipment
Industrial trolleys and material handling carts
Shipping containers
Metalworking machinery
Tool carts and warehouse trolleys
For a limited time, enjoy special discounted prices on our silver casting iron wheels. Contact a sales manager without delay to take advantage of this exclusive offer.
At Taishan Castors and Wheels Manufacturer, we are dedicated to providing you with wheels that enhance the performance and longevity of your equipment. Reach out to us today and allow us to assist you in selecting the right wheels for your needs, ensuring a seamless integration with your operations and a smart investment for your future.
