Elastic Rubber Industrial Castors

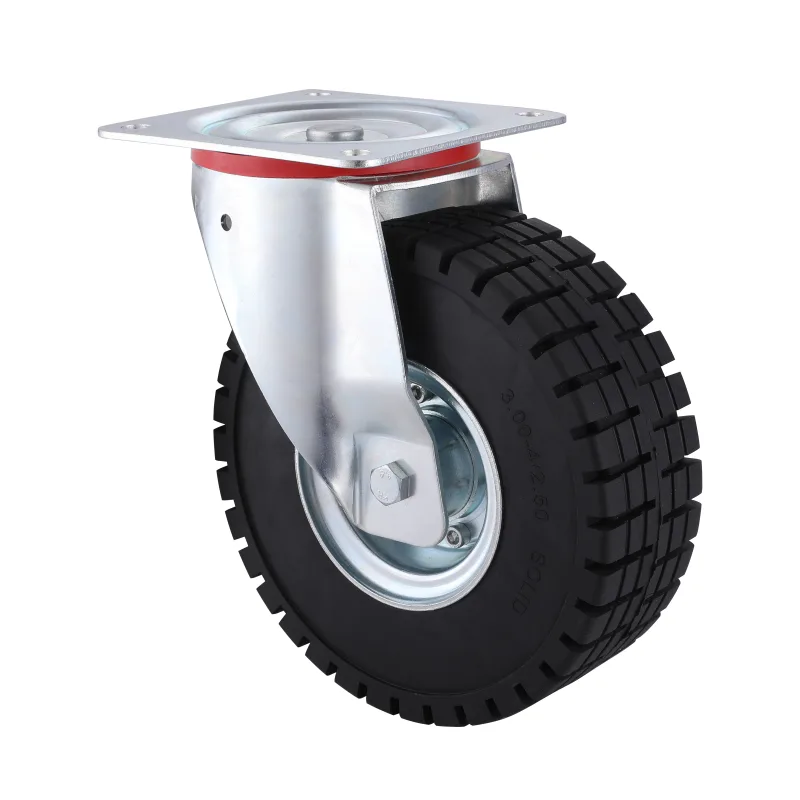

08 Series Industrial Castors with EL Series Black Loaded Elasitc Rubber Wheel
Compare available bracket configurations, wheel dimensions, bearings and load ratings. Use the specification tables to select the required model code and request a quotation.
Include required quantity, wheel diameter, load per castor and operating conditions.
Product overview
Series Features and Application
This product group combines compatible bracket configurations around one wheel series and material. Use the tables below to compare code numbers, wheel dimensions, mounting, overall height, bearings and rated load.
Final selection should consider the loaded equipment weight, number of castors, floor, travel speed, obstacles, mounting space, temperature and required braking or directional control.
Real configurations
Bracket Types and Parameter Tables
Compare model code, bearing, wheel diameter, mounting dimensions, overall height and load capacity.
Available configuration
Swivel Castors
| Code Number | Bearing | Wheel Diameter(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 08P1S260C85JELDX7520 | 260X85 | 175X175 | 140X140 | 15X15 | 70 | 295 | 400 |
Available configuration
Fixed Castors
| Code Number | Bearing | Wheel Diameter(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 08P1F260C85JELDX7520 | 260X85 | 230X130 | 190X75 | 14.5X14.5 | 295 | 400 |
Available configuration
Swivel Castors with Total Brakes
| Code Number | Bearing | Wheel Diameter(mm) | Plate Size(mm) | Plate Hole Centers(mm) | Plate Hole(mm) | Offset(mm) | Overall Height(mm) | Load Capacity(kg) |
|---|---|---|---|---|---|---|---|---|
| 08P1FB260C85JELDX7520 | 260X85 | 175X175 | 140X140 | 15X15 | 70 | 295 | 400 |
Before production
Specification Confirmation and Quality Review
Model codes and dimensional requirements are confirmed before an order. Product inspection can be arranged according to the agreed castor series and application.
Product inquiry
Request a Quote for This Castor Series
Select one or more bracket types and specification rows. Your inquiry automatically includes this product page and model information.
Send Product Requirements
Send your castor requirements. We will reply with product options, specifications and quotation details.
